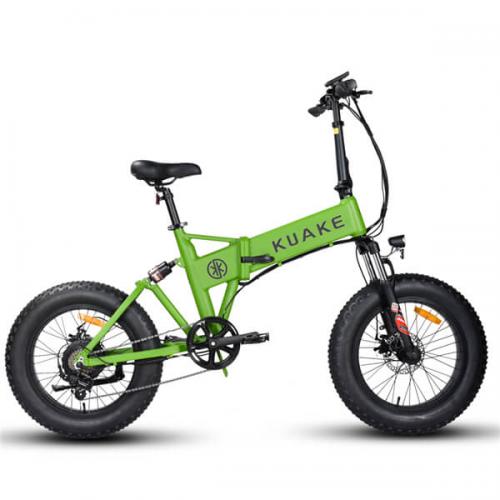

Folding Fat Tire Electric Bike

Folding Fat Tire Electric Bike
  • Model Number: KK2016
  • Brand Name: KUAKE
  • Place of Origin: Jiangsu, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 10000/month
  • Payment: T/T, D/P, L/C, Paypal, Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

KK2016 Folding Fat Tire Electric Bike Description

Color: Available in a variety of different colors, black, gray, blue, white, red, and customize.

Logo: Can customize your logo on electric bicycle fame.

Speed: Adjustable according to customer’s requirement. 25km/h for the EU market, 32km/h for the American market.

Charger: Smart charger, AC110V-240V/50-60Hz (different country plug optional), charging time around 5-6 hours.

Riding mode: 1.throttle 2.pedal assists 3. throttle+pedal assist 4. Pedal only, ride like a normal bike.

Riding distance per charge: 35km for throttle/50km for pedal assist.

KK2016 Folding Fat Tire Electric Bike Specifications

Model NO.: KK2016

Net Weight: 28kg

Gross Weight: 35kg

Frame: 20″, AL6061 Aluminum Alloy

Fork: Suspension fork

Gear: SHIMANO 7-speed

Shifters: 7 Speed

Free Wheel: 7 Speed

Front Brake: Disc Brake

Rear Brake: Disc Brake

Pedals: Alloy

Tires: KENDA 20”*4.0

Electric System

Battery: 48V 17.5Ah Li-ion battery

Charger: 48V/2A

Charge Time: 3~5 Hours

Recharge Times: 800~1000 Times

Motor Power: 48V 500W~1000W rear brushless motor

Controller: 48V Intelligent controller

Display: 5 level center LCD display

Max Speed: 40km/h

Distance For Charge: 50-75km

Shipping Details

Bike's Dimension: 177*58.5*126.5cm

Packing Size: 103*50*78cm
