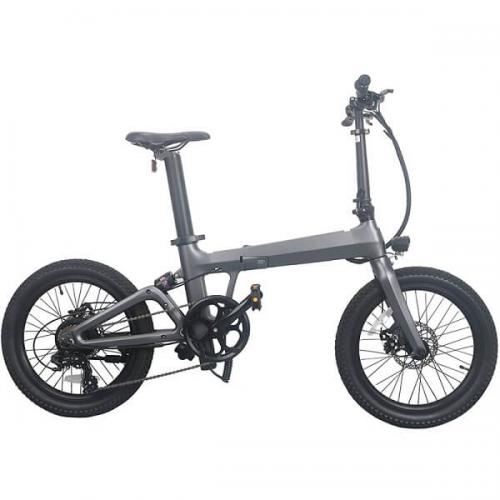

Magnesium Alloy Frame Electric Folding Bike

Magnesium Alloy Frame Electric Folding Bike
  • Model Number: KK7026
  • Brand Name: KUAKE
  • Place of Origin: Jiangsu, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 10000/month
  • Payment: T/T, D/P, L/C, Paypal, Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

KK7026 Magnesium Alloy Frame Electric Folding Bike Description

Magnesium Alloy Frame and Front Fork

Lightweight 17 kg and foldable (expand size: 1500*580*1100mm, folding size: 850*405*700mm)

Multiple colors are available and customizable

250w/350w high speed rear motor

36V 10.4Ah~14Ah lithium battery

Seatpost battery system

Shimano 7 speed

KK7026 Magnesium Alloy Frame Electric Folding Bike Basic Information

Model NO.: KK7026

Weight: 17 KG

Frame: Magnesium Alloy

Front Fork: Magnesium Alloy

Standard Loading: 100kg/220lb

Riding System: 5PAS+ Cruise

Expand Size: 1500*580*1100mm

Folding Size: 850*405*700mm

Components Specifications

Brakes: F/R Mechanical 160mm G3 Disc Brake

Brake Lever: Adjustable aluminum alloy

Shifters: SHIMANO Mf-Tz500-7 Speed

Derailleur: SHIMANO RD-TY300

Gear Crank: Prowheel 48T

Rear fire wheel: SHIMANO MF-TZ500-7

Tire: Kenda 20*1.95 inch

Wheel Diameter: 20 inch


Grip: High-density EVA shock-absorbing and non-slip comfortable handle

Chain: KMC

Light: LED

Rim: Double-layer al-aluminum disc brake cutter ring

Pedal: Folding non-slip pedal

Saddle: Ergonomic comfort

Electric System Specifications

Motor: 250/350W High-Speed Motor

Battery: 36V 5.2Ah ( Samsung 7.0Ah)

Battery Management System: Patent seat tube battery system

Charging Time: 3 hours

Controller: Kuake sine wave controller

Display: LCD Display

Recharge Times: 800~1000 times

Endurance Mileage: PAS>50km

Max Speed: ≤25km/h
