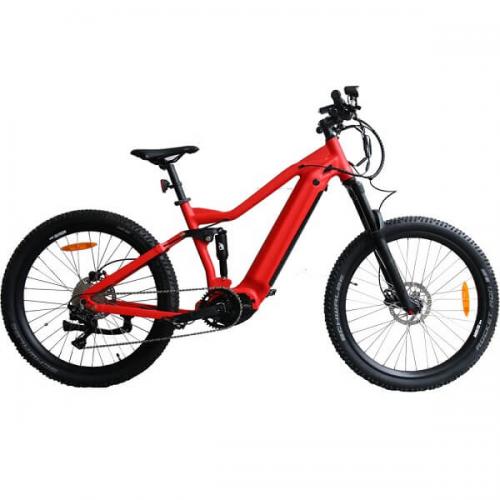

Full Suspension 1000W Electric Mountain Bike

Full Suspension 1000W Electric Mountain Bike
  • Model Number: KK2023
  • Brand Name: KUAKE
  • Place of Origin: Jiangsu, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 10000/month
  • Payment: T/T, D/P, L/C, Paypal, Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

KK2023 Full Suspension 1000W Electric Mountain Bike Description

Motor: 48V 750W Bafang brushless mid-drive motor provides more than enough power to your daily commute, a cruise on the mountain, or a meander along your favorite trail, max speed can be reached 40km/h.

Battery: The Samsung battery has a capacity of 14Ah, the charging time will take 4-6 hours and a battery life of 800~1000 cycles.

Display: The Bafang colorful LCD display guarantees you can read your statistics easily.

Brake: Front/rear TEKTRO oil hydraulic brakes are more efficient, so you need to apply less pressure at the lever for an equal level of braking power.

Shifters: Adjustable Shimano 9-speed transmission system which increases hill-climbing power, further range variation, and greater terrain adaptability.

KK2023 Electric Mountain Bike Specifications

Model NO.: KK2023

Frame: 27.5″, Aluminum Alloy AL6061

Fork: Suntour Full suspension XCM34 LO 15AH2

Gear: Shimano ARDM3000DSGS 9 speed

Shifters: Shimano ASLM3000RC 9 speed

Free Wheel: Shimano ACSHG2009132 9 speed

Front Brake: Tektro Oil Hydraulic brake alloy

Rear Brake: Tektro Oil Hydraulic brake alloy

Pedals: Wellgo B087 9/16 CR-MO BS black

Rim: HJC DP-45*27.5*13G*36H, A/V, ALLOY

Tires: CST 27.5*3.0, 60 TPI

Inner Tube: CST 27.5*3.0

Spokes: SLE 13G

Handlebar: Promax HB-3188-W640, 8°, R18, L200,H50.9, 2.3*2.8*2.3

Stem: Promax MA-410 alloy

Grip: SR VLG884AD2

Brake Lever: Tektro Alloy Black

Head Set: NECO H383EM 44*56*39.8

Saddle: Justek SI-1285URN

Electric System

Battery: 48V 14Ah, SAMSUNG 3500 cells

Charger: SSLC109V55, 48V2A, GS/CE SAA/ROHS

Charge Time: 4~6 hours

Recharge Times: 800~1000 times

Motor Power: Bafang M620 48V 750W~1000W Middle drive

Controller: Bafang 48V

Display: Bafang 48V Colorful C-18 display

Max Speed: 45km/h

Distance For Charge: 50-60km

Shipping Details

Packing Size: 1960*250*1155mm

40"Hq(Pcs): 120pcs

20"Hq(Pcs): 54pcs
